Yamaha YXZ 1000R A-Arm & Trailing Arm Guards

Built to Take the iMPACT

Break bad on the trail and take on the toughest terrain with Trail Armor iMPACT A-Arm and Trailing Arm Guards for the 2016–2025 Yamaha YXZ 1000R.

Built from the same 1/2" Super Tough polymer used in Trail Armor skid plates, these guards provide three-sided a-arm protection while remaining lightweight, rust-proof and ready for aggressive off-road use.

Key Benefits

Protects both front A-arms and rear trailing arms
Three-sided front a-arm protection
Helps defend suspension components from rocks, roots and trail debris
Lightweight alternative to metal guards
Easy vehicle-specific installation

Construction

Absorbs impacts without deformation or bending
Rust-proof and corrosion-resistant
Built for repeated off-road impacts

Protection and Coverage

Front coverage helps shield against direct trail impacts
Rear coverage helps protect against rocks and debris thrown into the suspension
Bottom coverage helps defend against obstacles encountered from below

Installation

Vehicle-specific mounting design
Easy bolt-on installation
Mounting hardware included

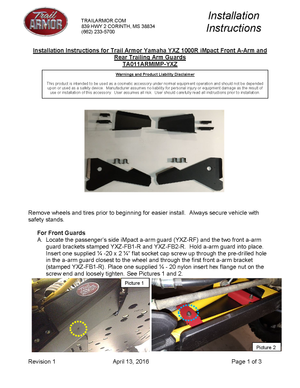

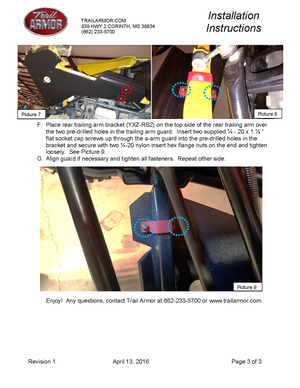

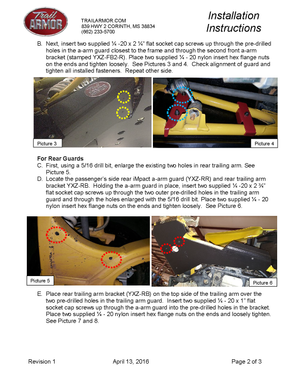

Photo-documented installation instructions included

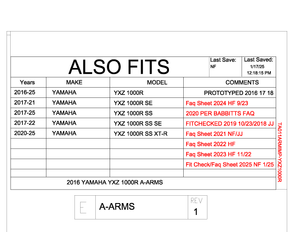

📌 See the FITMENT GUIDE for exact year and model compatibility.

What’s Included

Front A-Arm Guards
Rear Trailing Arm Guards
Mounting hardware
Photo-documented installation instructions

Important Information

Colors are considered special order
Special-order colors are non-returnable
Colors are not pigment-matched to OEM manufacturer color schemes
Guards are not engraved
Gallery images showing contrasting colors are for edge-color illustration only
Contact Trail Armor with questions about coordinating colors with your vehicle’s plastics or graphics

Ride Hard. Stay Protected.

Give your Yamaha YXZ 1000R the suspension protection it needs to take hard hits, guard vulnerable a-arms and keep you moving through demanding terrain.

91%

(499)

(36)

(11)

(0)

539

Great fit, and easy to install.

Got these for my 2026 Xpedition. Everything fit great except for the 2 front bolts under the wench (example picture 14 on the instruction page). Trail Armor provided 2 3/8 inch self tapping bolts, they were a bit to small to tap in the holes on the 2026 model. Easy fix i installed 2 1/2 inch bolts and nuts with flat washers. The 3/8 bolts that they provided would have worked if i would have had the nuts to screw on them. Great product and great customer service.

Easy install

Easy install, great fit and much easier cleaning

Trailing arm skid plates

Super easy install and contours perfectly to the trailing arms.

Quality components and fit

Quality components and fit, looks great.

Trail Armor 1/2” Skid Plates 2019 Maverick Trail 1000 DPS

Skid plate precut mounting holes lined up very well to frame. I had to do some trimming on the front outer corners to clear my tubular rock sliders. Also trimmed a half inch to a taper on the left outer edge to relieve some interference to the left tubular rock slider. I replaced the front 5/16x 3” bolts to 5/16 x 3 1/4” bolts to ease installation. Also trimmed the leading and trailing edges to front and rear skid plates to a 45 degree taper to create a ramp should it contact any obstacle straight on. My modifications weren’t necessarily required if it wasn’t for my preexisting rock sliders. The taper to front and rear edges was just a personal touch to avoid shear effect should it make contact straight on a solid object. I have not had it on the trail yet for a test drive. However, I’m confident it will be a great improvement over the flimsy busted stick plates.
