Trail Armor Yamaha YXZ 1000R Full Skids with Integrated Sliders

Complete Underbody & Rocker Panel Protection

Take on rocks, ruts, ledges, and technical terrain with confidence. Trail Armor's Full Skid Plate System with Integrated Slider Nerfs delivers industry-leading protection for your Yamaha YXZ, combining full underbody coverage with extended side protection in one rugged package.

Constructed from ½" Super Tough polymer, these skid plates absorb impacts without  rusting or corroding, while remaining lighter than traditional aluminum or steel skid systems.

Full-Coverage Underbody Protection

Designed to shield critical components from front to rear:

• Full-length and full-width skid coverage
• Protects:
  • Front differential
  • Rear differential
  • Frame rails
  • Belly pan
  • Wheel well edges
  • Radiator cowling
• Includes front and rear bash plates for additional impact protection

Built from ½" Super Tough Polymer

• Absorbs impacts without dents or deformation
• Lighter than traditional metal skid plates
• Rust-proof and corrosion-resistant
• No "impact memory" for long-lasting durability
• Built to handle aggressive trail riding and rock crawling

Integrated Slider Nerf Protection

Unlike many skid systems that leave rocker panels exposed or require separate nerf bars:

• Extended side panels function as integrated slider nerfs
• Protect vulnerable rocker panels and lower bodywork
• Helps deflect impacts from rocks, trees, and trail obstacles
• Delivers more complete side protection than many competing skid systems

Trail Armor Leading Edge Technology

• Formed front and rear leading edges pioneered by Trail Armor
• Protect vulnerable frame edges and wheel wells
• Helps the vehicle glide over obstacles more smoothly
• Reduces drag and hang-ups compared to traditional metal skid plates

Maintenance-Friendly Design

• Built-in access holes for service points and oil drains
• Strategically placed drain holes help flush out mud and debris
• Individual panels can be removed independently when needed
• No need to remove the entire skid system for routine maintenance

Premium Engineering

• Lap-jointed panels create one continuous smooth sliding surface
• Eliminates exposed edges that can catch on obstacles
• Recessed mounting holes protect hardware from impacts
• Corrosion-resistant mounting hardware included
  • Some self-drilling screws required for installation

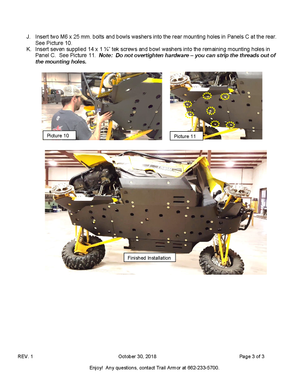

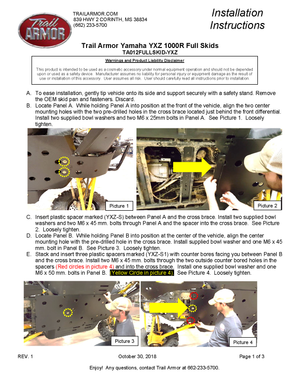

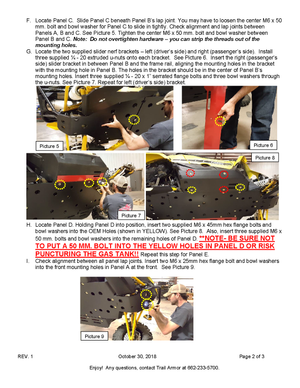

• Photo-documented installation instructions included

Compatibility

• Compatible with Yamaha front and rear bumpers

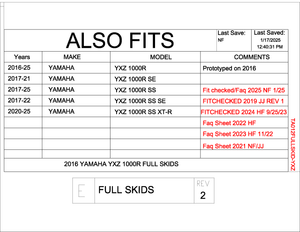

📌 Refer to the FITMENT GUIDE for exact year and model compatibility.

Additional Protection Available

Trail Armor A-Arm Guards shown in product images are sold separately.

Part Number: TA011ARMIMP-YXZ1000

Important Information

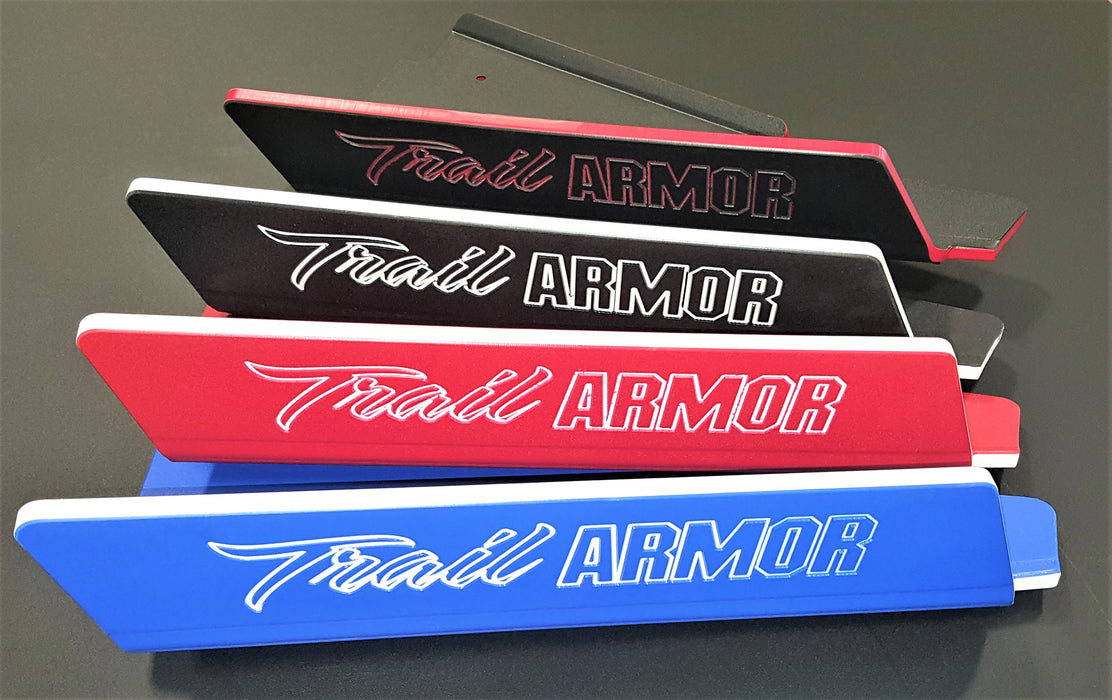

• Colors are considered special order
• Special-order colors are non-returnable
• Colors are not matched to OEM graphics packages
• Contact us with questions regarding color coordination and graphics matching

Ride Hard. Slide Smooth. Stay Protected.

Trail Armor's Full Skid Plate System with Integrated Slider Nerfs delivers unmatched coverage, superior impact protection, and trail-proven durability for Yamaha YXZ owners who demand the best.
