Trail Armor 2025 Yamaha Wolverine RMAX4 1000 X-TR, RMAX4 1000 Limited Edition Full Skids

SKU TA012FULLSKID-YW-RMAX4-BK
Original price $1,075.00 - Original price $1,275.00
Original price
$1,075.00
$1,075.00 - $1,275.00
Current price $1,075.00

Complete Underbody Protection for Extreme Terrain

Protect your RMAX4 with Trail Armor’s premium skid plate system, engineered from ½” Super Tough polymer for maximum impact resistance and long-term durability. Lighter than traditional aluminum skid plates and built with zero impact memory, these skids absorb punishment without rusting, or corroding.

Designed for riders who demand full coverage, smoother sliding performance, and serious trail protection.

⚠️ Important Fitment Note

❌ Will NOT fit RMAX4 Compact models
➡️ See part number TA012FULLSKID-YW-RMAX4COM

Full-Coverage Underbody Protection

  • Protects the entire underside of the vehicle
  • Covers:
    • Front differential
    • Rear differential
    • Frame rails
    • Belly pan
    • Lower body panels
  • Extended side panels reach approximately ½” past rocker panels for additional side protection

Unlike many competitors, Trail Armor includes integrated rocker panel protection instead of selling it separately.

Built Trail Armor Tough

  • Constructed from ½” Super Tough polymer
  • More impact-resistant than aluminum or steel
  • Lightweight, rust-proof, and corrosion-resistant
  • Absorbs impacts without permanent deformation

Advanced Trail-Ready Design

  • Smooth sliding surface helps glide over rocks and obstacles
  • Recessed mounting holes protect fasteners from impact damage
  • Installs directly over the factory metal skid plate

Maintenance-Friendly Engineering

  • Pre-cut service access holes for oil drains and maintenance points
  • Strategically placed drain holes allow mud and debris to wash out naturally
  • Modular panels allow individual sections to be removed independently

No need to remove the entire skid system for routine maintenance.

Easy Installation

  • Corrosion-resistant mounting hardware included
    • Some tek screws required for installation
  • Photo-documented installation instructions provided
  • Installation videos available when applicable

Additional Information

  • A-arm guards shown in images are sold separately
    • Part # TA011ARMIMP-YW-RMAX2
  • Bash plate sold separately
    • Part # TA-YW-RMAX-BASH

Important Information

  • Colors are special order
    • Non-returnable
    • Not matched to OEM graphic packages

📌 Refer to the Fitment Guide for exact year and model compatibility.

Ride Hard. Slide Smooth. Stay Protected.

Trail Armor skid plates deliver premium underbody protection trusted by riders who push their machines to the limit.

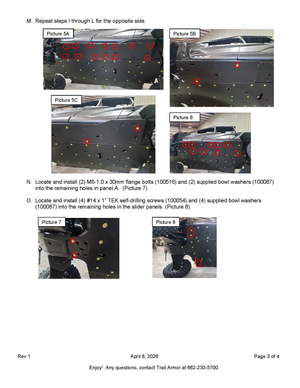

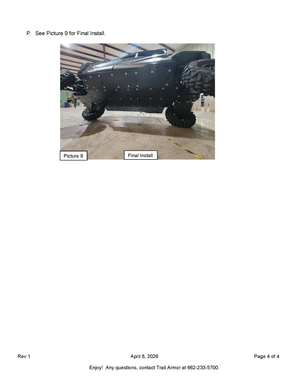

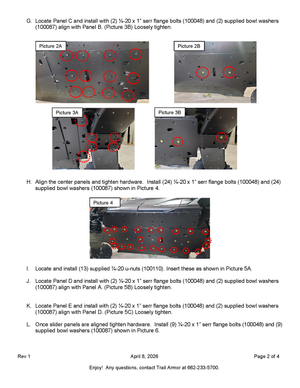

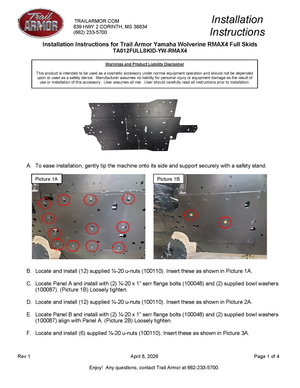

Installation Instructions

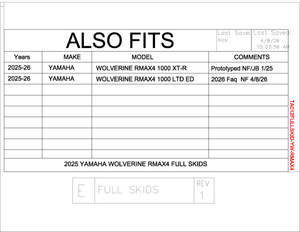

Fitment Guide
