Trail Armor Ranger XP 900, Ranger Crew XP 900, Full Size Ranger XP 570, Ranger XP 1000, Ranger Crew XP 1000 Underbed Mud Shield with Fender Extensions


Original price $210.00 - Original price $210.00
Original price
$210.00 - $210.00
Current price $210.00

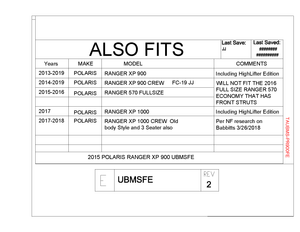

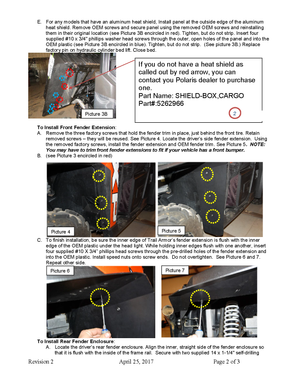

Tired of your tires caking mud in that impossible-to-clean honeycomb under your Polaris Ranger's dump bed and rear fender panels? Trail Armor's under bed mud shields with fender enclosures fit over those problem areas on the underside of your bed and in front of your tires to keep the mud out - and they feature front and rear fender extensions to keep the mud off your vehicle. Made from 1/8" thick plastic, these panels are custom cut to fit and will not interfere with dumping capability. Fender extends provide 4" of coverage from the vehicle body. Will fit Ranger XP 900 2013 - 2019 (including Highlifter edition), the 2014 - 2019 Ranger XP 900 Crew, 2017 Ranger XP 1000 (includes Highlifter SE and Northstar SE), 2017 - 2018 Ranger Crew XP 1000 and the 2014 - 2016 FULL SIZE Ranger XP 570. WILL NOT FIT THE 2016 and 2017 FULL SIZE RANGER 570 THAT HAS FRONT STRUTS OR THE 2019 RANGER CREW 1000 (NEW BODY STYLE). This kit has been modified in response to the most recent Polaris recall. If it is not already installed on your vehicle, you will need to install Part Name: SHIELD-BOX,CARGO Part #:5262966 to complete the coverage of the honeycomb on the passenger side bed.
